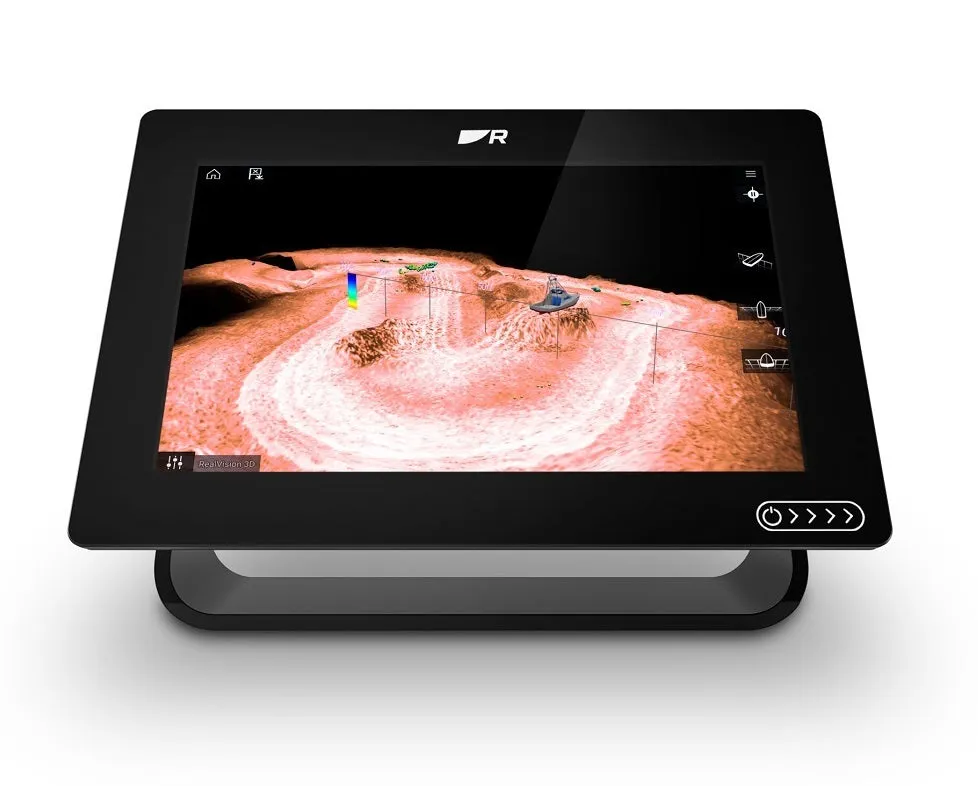

Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date. The Raymarine Axiom range was designed for speed, performance, and future expansion.
Features
- Navionics and C-Map charts available quickly and easily.
- Smart and intuitive LightHouse 3 OS makes navigating easy.
- Powerful quad-core processor, plus increased onboard storage for personal data and apps.
- ClearCruise™ Augmented Reality-capable for smarter navigation decisions.
- Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning colour.
- Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.
- The new 7, 9, and 12 inch displays deliver 25 percent more brightness in any lighting condition.
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.
- Improved viewing with new LightHouse colour themes, including Day and Night mode.
- Network with multiple Axiom displays, radars, sonar, and more.
- Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.
Box Contents
- Multifunction Display
- Trunnion bracket
- Trunnion knobs x 2
- Suncover: Trunnion mount
- Panel mount gasket for surface/flush mounting
- M5x58 Threaded studs x 4
- M5 Thumb nuts x 4
- Documentation pack
- DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in)
- Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
- Rear mounting brackets
- RV100 Transducer
Specifications
- Display Size: 9.0 inch High Density IPS
- Display Resolution: 1280 x 720 (WXGA)
- Display Type: Multitouch with HydroTough™ rugged hydrophobic coating
- Brightness: 1,500 nits
- Viewing Angle: 85° Top, Bottom, Left, Right
- Dimensions W x H x D (Excluding trunnion and cables): 9.65 x 6.22 x 3.0in
- Mounting Options: Surface, Flush, Trunnion, (Front installation bracket available)
- Waterproof Rating: IPX6 / IPX7
- Operating Temperature Range: -25°C to 55°C (-13°F to 131°F)
- Storage Temperature Range: -30°C to 70°C (-22°F to 158°F)
- Voltage: 12V DC (8V to 16V DC)
- Power Consumption (Full brightness): 11.98 Watts
- Sensors: GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required
- Sonar Type (Built-in) RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D
- Sonar Connections 25pin RealVision™ type connector
- Sonar Depth High CHIRP Sonar = 900 feet (274m)
- DownVision™ = 600 feet (183m)
- SideVision™ = 300 feet (91m)
- RealVision™ 3D = 300 feet (91m)
- External Sonar Option Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
- Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
- AIS Yes - NMEA2000 compatible
- Autopilot Control Yes - Evolution Autopilot
- Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500
- Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
- Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio
- Digital Switching Yes - Empirbus & C-Zone compatible
- Remote Control Yes Optional RMK-10 (A80438)
- Ethernet 1 x 10/100 Mbit/s Network (RayNet)
- NMEA0183 No
- NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
- SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)
- USB 1 x USB microAB
- Wi-Fi WiFi - 802.11 a/b/g/n
- BlueTooth Bluetooth v4.0
- Cartography Lighthouse Charts, Navionics, and C-MAP compatible
- Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
- Internal Memory 16 GB Solid State
- External Memory 1x MicroSD Card Slot
- Australia and New Zealand: C-Tick, Compliance Level 2
